TSTEQBCH Series - All-in-one Panel PC Torque Testing Trolley

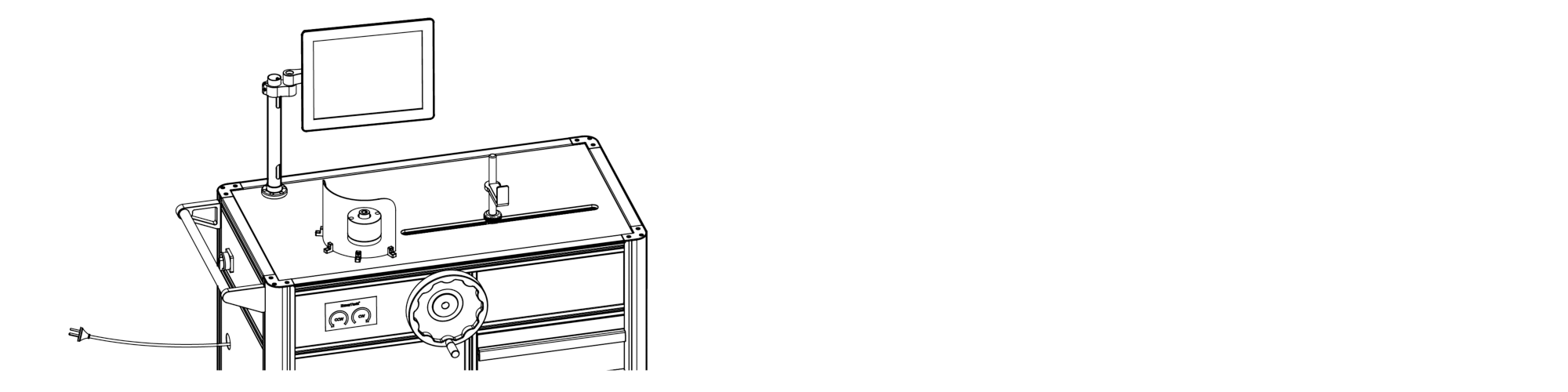

● This trolley is designed for on-site torque wrench testing and calibration on production lines.
● It features an industrial all-in-one panel PC with a responsive touchscreen for intuitive menu operation and easy-to-read data, keeping the workspace clean and organized.
● The worktop features organized slots for multiple BZ transducers, which can be automatically recognized by the system upon connection.
● The reaction bar is adjustable to accommodate wrenches of various lengths.
● A large handwheel on the front allows smooth and controlled force application for precise testing.
● With four wheels, including dual swivel casters, the trolley can be easily moved by the side handle and secured with wheel brakes.
● Built-in storage drawers keep transducers, USB cables, and tools neatly organized.

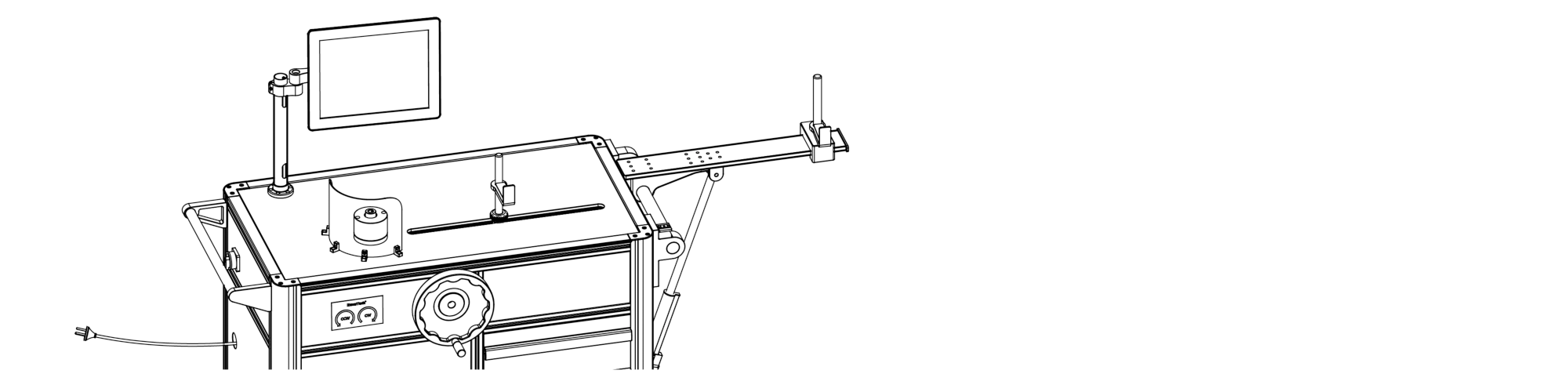

● The L model features an automatically deployable extension bar (electrically operated), enabling efficient testing of large torque wrenches.
● Max. measurable torque:
400 N.m (Model TSTEQBCH400)
● Adjustable reaction bar for torque
wrench: 130-700 mm
● Length x Width x Height:
1335 x 730 x 1355mm
● Net weight: 135 kg
● Max. measurable torque:
1250 N.m (Model TSTEQBCHL1250)
1500 N.m (Model TSTEQBCHL1500)
● Adjustable reaction bar for torque wrench: 130-1450 mm
● Extension bar extended (LxWxH): 2045x730x1355mm
● Extension bar retracted (LxWxH): 1495x730x1355mm
● Net weight: 185 kg
