DC-05WX Series - 1-To-1 Wireless Preset Torque Wrench System (Counting Type)

● This One-to-One wireless transmission system is specially designed for the production line to ensure all the bolts are tightened.

● On detecting the wrench's "Click", the receiver will capture the wireless signal and output a switch signal for immediate user application.

● Wireless transmission distance: Within a 20-meter circular range.

● Wireless transmission frequency: 2.4GHz.

● The receiver is powered by a dedicated 12V DC power adapter (included).

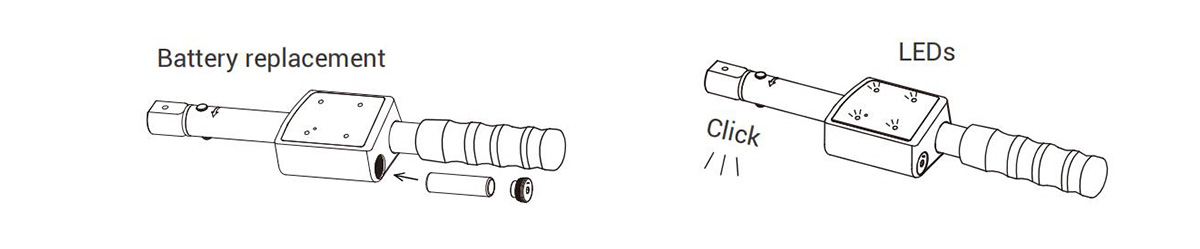

● When “Click” occurs, the four green LEDs on the transmitter will turn on, as well as the green LED on the receiver.

● The transmitter is powered by a 3.7V 14500 (≥850mAh) lithium battery, which can be replaced without delaying work.

DC-05WX

1-1 Wireless Torque Wrench Checking System

(Metric)

Item No.	Wrench	Receiver	Shank Size	Torque Range		Length
Item No.	Wrench	Receiver	mm	N.m	Lb.ft	mm
DC-05WXH950	DC-05WXH950.0100	DC-04WX.0200	9X12	10-50	8.0-40	245
DC-05WXH985	DC-05WXH985.0100	DC-04WX.0200	9X12	17-85	12-60	315
DC-05WXH9120	DC-05WXH9120.0100	DC-04WX.0200	9X12	24-120	12-90	353
DC-05WXH14200	DC-05WXH14200.0100	DC-04WX.0200	14X18	40-200	30-150	430
DC-05WXH14300	DC-05WXH14300.0100	DC-04WX.0200	14X18	60-300	45-225	690
DC-05WXH14500	DC-05WXH14500.0100	DC-04WX.0200	14X18	100-500	80-400	970
